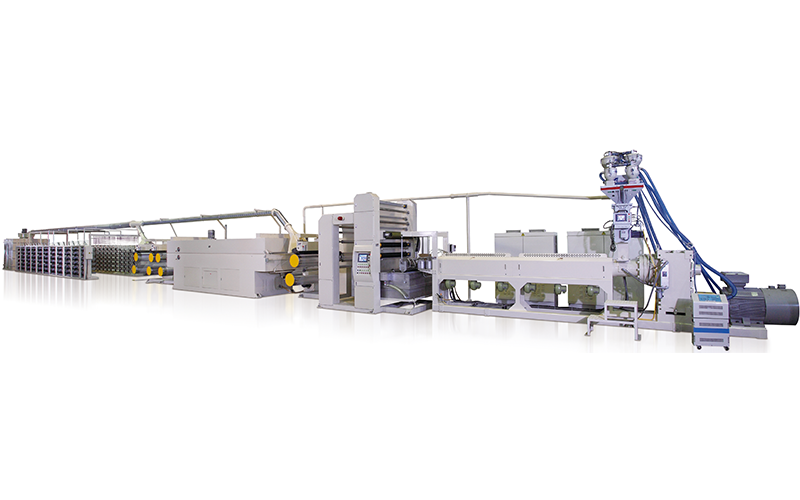

Extrusion Tape Line
One layer extrusion tape line for producing PP, or HDPE flat tapes. With melting capacity from 150kg/hour to 600kg/hour, producing films width from 720mm to 1350mm. Tape Winding speed from 280m/min to 400 m/min, which produces premium quality tapes for use in woven sack, Kraft Paper cement sack, PE Tarpaulins, and various applications.
- Proven global track record — Part of the same complete production line trusted by manufacturers in 70 countries
- Modular & customizable — Scalable from small to high-capacity output; adaptable to existing factory layouts
- Integrated automation options — Gravimetric dosing, auto screen changer, and real-time thickness monitoring reduce operator dependency
- Material flexibility — Processes both PP and HDPE, covering the widest range of woven packaging applications
- Turnkey support — Sourced from the same supplier as your circular loom, lamination line, and conversion equipment
What materials can Phyllis extrusion tape lines process?
Phyllis extrusion tape lines are compatible with polypropylene (PP) and high-density polyethylene (HDPE). Both materials are widely used in producing flat tapes for woven sacks, tarpaulins, and industrial packaging applications.
What is the melting capacity of the Phyllis extrusion tape line?
The line is available in two models: the tapeXW 720M with a maximum melting capacity of 150 kg/hour, and the tapeXW 1350I with a maximum melting capacity of 600 kg/hour. The appropriate model depends on your required output volume.
What tape winding speed can Phyllis extrusion lines achieve?
The tapeXW 720M achieves tape winding speeds up to 280 m/min, while the tapeXW 1350I reaches up to 400 m/min. Actual speed may vary depending on raw material quality and additive composition.
Can the extrusion tape line be integrated with downstream equipment?
Yes. Phyllis extrusion tape lines are designed for seamless integration with gravimetric dosing units, automatic screen changers, HMI touch screen control panels, thickness measurement systems, and waste yarn reclaiming systems. As a turnkey supplier, Phyllis also provides the downstream circular looms, lamination lines, and conversion equipment to complete the full production line.
Is customization available for the extrusion tape line?
Yes. The line is built on a modular design platform, allowing configuration to match specific capacity requirements, factory layout constraints, and output specifications. Contact our engineering team for a customized proposal.
Gravimetric dosing units, automatic screen changer, HMI with touch screen panel, thickness measurement system, and waste yarn reclaiming system.
Specification- Processing of PP, HDPE
- Melting capacity of 150 - 600 kg/hour
- Customization with modular design
* Output varies with quality of raw material and additives
| Model Number | tapeXW 720M | tapeXW 1350I |
|---|---|---|
| T-Die width | 800 mm | 1500 mm |
| Film width | 720 mm | 1350 mm |
| Denier | 600D - 1000D | 600D - 1000D |
| Melting capacity (max.) | 150 kg/hour | 600 kg/hour |
| Tape winding speed (max.) | 280 m/min | 400 m/min |
