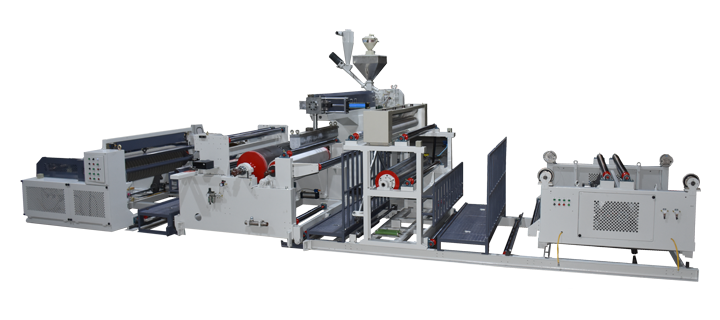

Lamination Line (Woven Sack)


Lamination application for tubular woven fabrics. High level of coating technique provides smooth and even coating surface, which reduces material waste, while maintaining highest quality of coated fabric.

Specification
  • Automatic roll change system with max. machine running speed at 80 m/min
  • Line speed up to 150 m/min*
  • Gravimetric dosing unit as optional equipment
  • Edge trimming system
  • Modular machine concept
  • Customization upon request

* Depends on machine type, fabric and roll quality

Technical Data
Model Number lamXW 1600
Lamination Type Single and double side
Application - Tubular woven fabric
- Woven fabric
Working width
(single side)
800-1600 mm
Working width
(double side)
350 -800 mm
Operating speed(max.) 150 m/min
Melting capacity (max.) 360 kg/hour

* Machine specification depends on machine type, fabric type, application and roll quality
