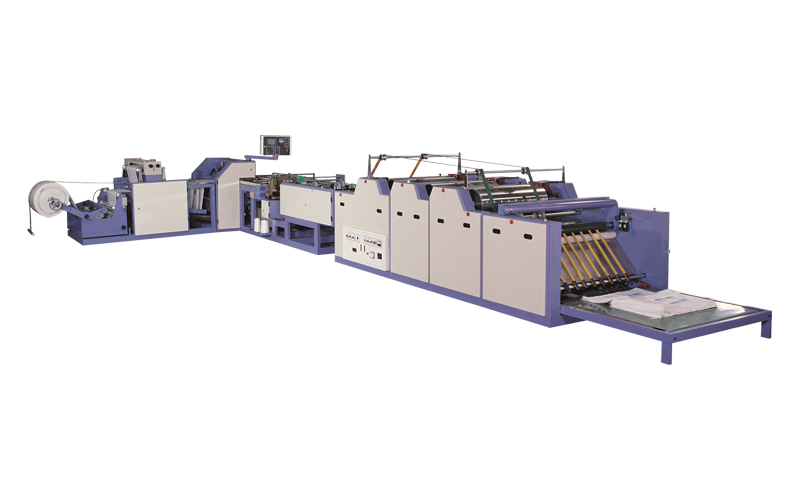

Conversion line (cutting-sewing-printing)
The new generation of woven sack conversion line for bottom-sewn sacks is suitable for coated and uncoated woven fabric. With great variety of options, a wide possibility of applications is brought for the customer.
Specification
- Smooth bag mouth opening
- Modular design with various optional devices for selection
- Corona treater available upon request
- Free fall collection unit available upon request
- Easy open sewing machine available upon request
*Speed varies with different sizes of sack, and quality of fabric
Technical Data
Model Number | Konvatex C |
---|---|
Application | Woven sack |
Roll diameter (max. ) | 1400 mm |
Coated/uncoated cloth width (max.) | 250-850 mm |
Sack length | 450-1500 mm |
Max. machine capacity | 40 pcs/min |
Printing Stations | 2-6 |
*Speed varies with different sizes of sack, and quality of fabric
