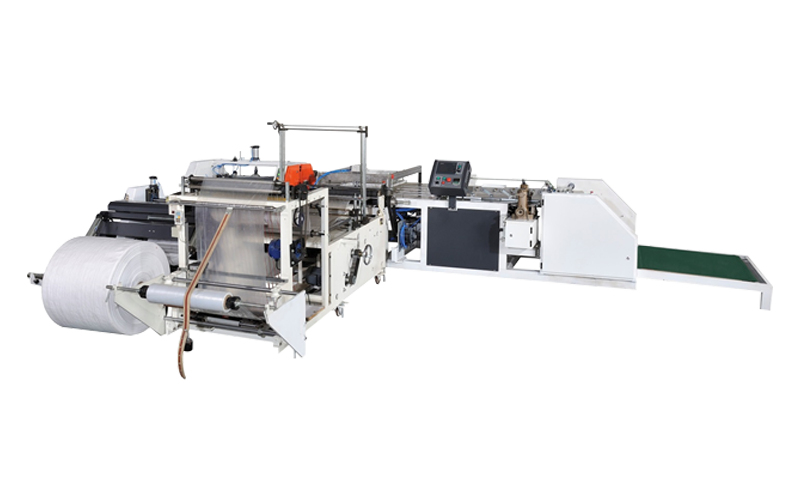

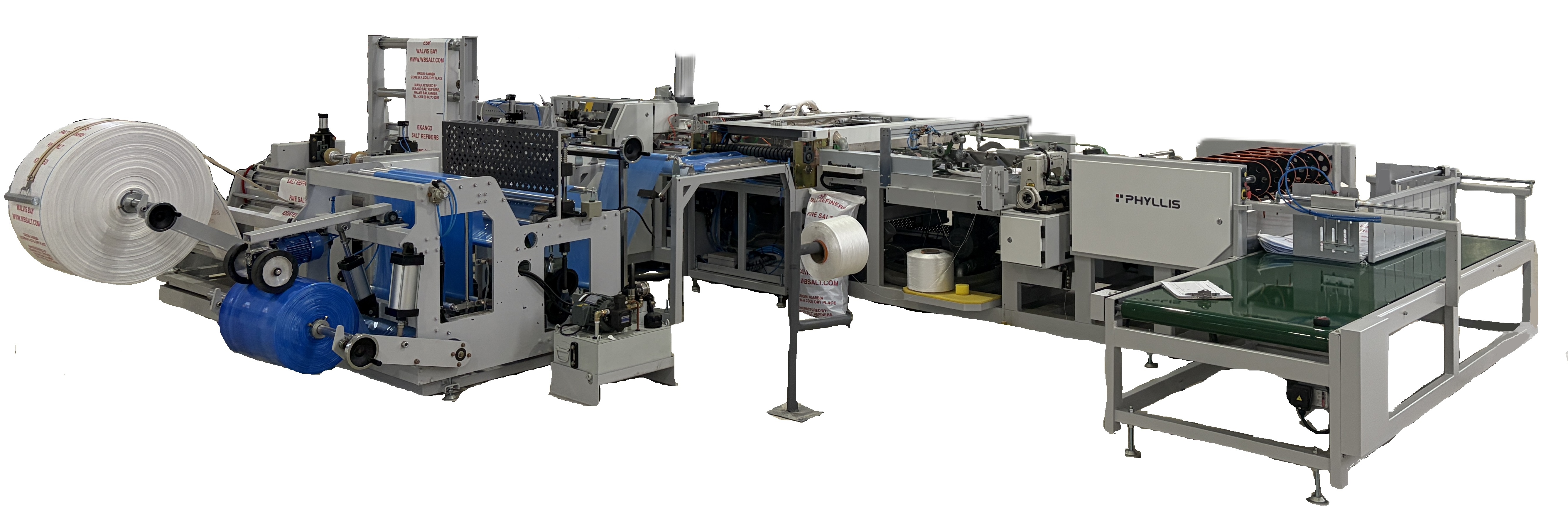

Liner Insertion Conversion line


Innovative design for inner liner inserting-cutting-sewing in one process.

Specification
  • Liner insertion capacity up to 28 bags per minute
  • Choice of liner Insertion only, or liner insertion with sewing
  • Equipped with enhanced mouth opening device
  • Automatic liner insertion process reduces possibility of contamination caused by traditional manual type liner insertion.

*Speed varies with different sizes of sack, and quality of fabric and liner

Technical Data
Model Number ABMM-2016
Application PE liner insertion into PP woven sack
Roll diameter (max. ) 1200 mm
With liner insertion
Coated/uncoated cloth width (max.) 400-700 mm
Sack length 600-1100mm
Max. production capacity 28 pcs/min
Without liner insertion (cutting-sewing only)
Coated/uncoated cloth width (max.) 400-800 mm
Sack length 450-1350mm
Max. production capacity 30 pcs/min

*Speed varies with different sizes of sack, and quality of fabric
