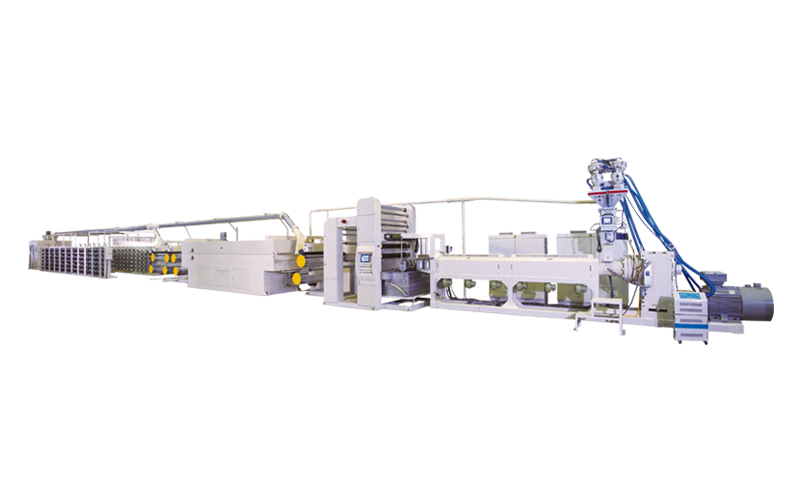

Extrusion Tape Line(FIBC Tapes)
One layer extrusion tape line specially designed to produce PP tapes for high performance application at premium quality mainly used for FIBC fabrics, and various technical applications.
Integration with
Gravimetric dosing units, automatic screen change, HMI with touch screen panel, thickness measurement system, and waste yarn reclaiming system.
Specification- Processing of PP
- Max. melting capacity of 600 kg/hour
- High tenacity tapes
- Tape winding speed 400 m/min
- Recommended with Thickness measurement system
- Precision fibrillator available upon request (4500 – 20000 Denier PP Fibrillating Yarn)
- Flat tape folding device available as option
- Customization with modular design
* Output varies with quality of raw material and additives
| Model Number | tapeXB 1350I |
|---|---|
| T-Die width | 1500 mm |
| Film width | 1350 mm |
| Denier | 600D - 2200D |
| Melting capacity (max.) | 600 kg/hour |
| Tape winding speed (max.) | 400 m/min |
