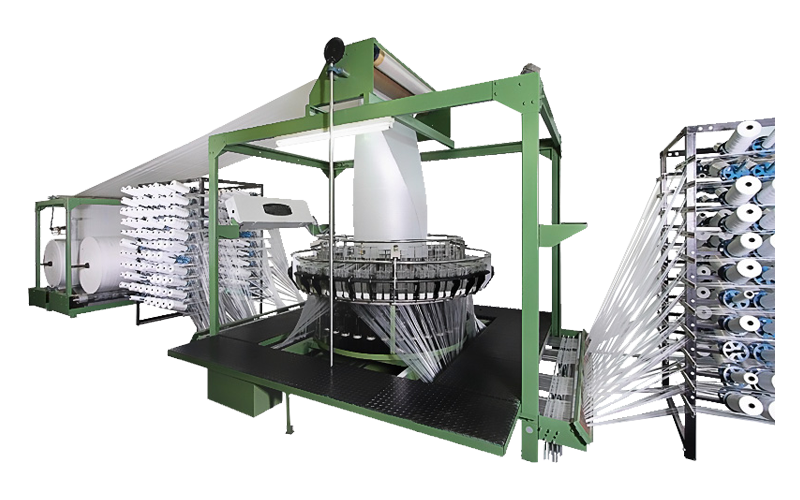

Telar circular (telas de alta resistencia)
Consistencia con simplicidad y flexibilidad, los telares son fáciles de operar y mantener, al tiempo que producen telas de alta calidad de alta calidad adecuadas para FIBC, lonas y otros textiles especiales.
Specification
- Application for FIBC, Tarpaulin, and various applications
- Optional equipment of center slitting device, or both side slitting device
- Ultrasonic slitting device available upon request
- Warping roller system available upon request
- Patented design with enhanced life time of spare parts
- New circular rail design ensures stable shuttle movements
* depending on tape quality, fabric width and density
Technical Data
| Model Number | PH-6/150 | PH-8/215H |
|---|---|---|
| Application | FIBC, Tarpaulin | FIBC, Tarpaulin |
| Shuttle/machine | 6 pcs | 8 pcs |
| Max. Shuttle Speed | 90 rpm | 75 rpm |
| Weft insertion up to | 540 ppm | 600 ppm |
| Working width, tubular | 90 cm – 130 cm | 180 cm – 210 cm |
| Weft bobbin diameter (max.) | 100 mm | 110 mm |
| No. of warp creel (bobbins) | 1360 pcs | 2600 pcs |
| Warp/weft core inside diameter | Φ23 mm–Φ38 mm | Φ23 mm–Φ38 mm |
| Warp/weft length of core | 215 mm – 230 mm(L) | 215 mm – 230 mm(L) |
| Winding roll diameter (max.) | Φ1200mm | Φ1200mm |
| Main motor with inverter | 10 HP | 15 HP |
* depending on weaving construction, fabric, and quality of tapes
