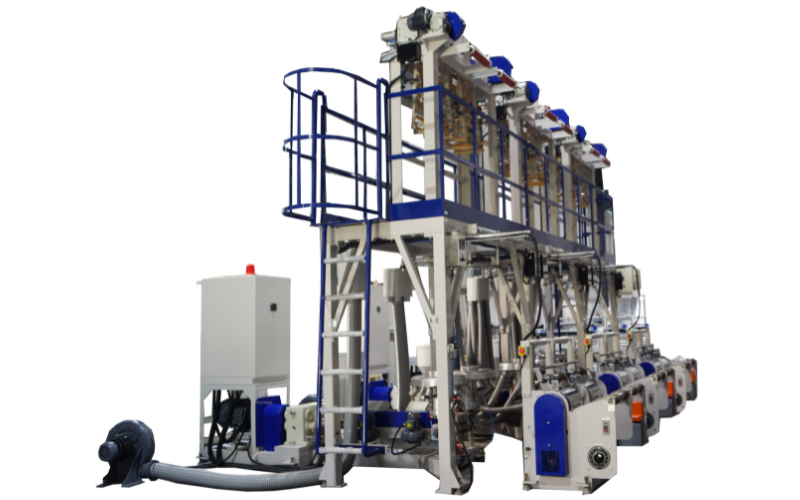

Twin head blown film machine
Film blown production line for producing flexible packaging used for every day life.
Integration with
Monolayer blown film machine, blaX 1 Duo, with double efficiency of bag production by using double dies.
Specially designed for thin film and small sized bags production. Highly effective for T-shirt bag producers desire for higher output production line with cost effective solution.
Specification- Suitable for HDPE and LDPE bag producers with wide range of products, such as t-shirt bags, flat bags, shopping bags, fruit and vegetables bags, bottom sealed bags, bag-on-roll, die-cut bags, kitchen bags, and etc.
- Mainly designed for producing film range from 150mm to 750mm
- Customization of screw available upon request for using materials like CaCo3, Recycled materials, Biodegradables
* Output varies with quality of raw material and additives
| Model Number | blaX 1 Duo |
|---|---|
| Film Layer | Mono layer |
| Number of extruder | 1 |
| Raw material | HDPE, LDPE, LLDPE |
| Screw size | 40 mm – 75 mm (customization upon request) |
| Extrusion output | 30 KG/hour – 140 KG/hour |
| Film width | 500 mm – 1500 mm |
| Film thickness | 8 micron – 100 micron |
| Application | T-shirt bag, side-sealed bag, shopping bag, garbage bag on roll, fruit bag, bottom-sealed bag |
